HB12 Optical Horizontal Profile Projector

Model Number ：HB12 Work table: 408x126mm work size x y z: 200x75x100mm Instrument measurement precision (UM): < or =(3+L/200) X.Z resolution: 0.0005mm Projector screen size (mm): Dia330 Projection rotation range: 0-360 Rotation Angle resolution: 1 or 0.01 Objective lens: 10x .20x.50x.100x Object field : Dia30 Dia15. Dia6 .Dia3 Focal distance of objective: 77. 44. 39. 25 Instrument illumination: 24V/150W halogen lamp Power Supply： 110v/220v (AC),50/60HZ, 400W Instrument size (L*W*H): 1147X556X964mm

HB16 Horizontal Profile Projector

Model number: HB16 400mm diameter screen with digital protractor; 300x150mm precision movement work-stage, 300x200mm optional; Work-stage sway range between 15°; Halogen profile and fiber surface illumination adjustable; Geometric multifunction data processing system DRO DP300; Built-in Mini-printer; Available 10x,20x,50x, objective rotary table and foot-switch, etc.

HB24 Horizontal Profile Projector

Reverse Image: HB24 Obverse Image: HB24Z Metal Stage Size: 455 x 126mm Stage Travel: X and Y-axis: 300 x 150mm Stage Travel:Y-axis : 75mm (for focusing) X and Z Linear Resolution : 0.0005 mm Sway Range: ±15° Accuracy: ≤3+L/200(um) Screen: Diameter :?625mm,Effective Range ≥ ?600(with “* ” Reticle) Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° Digital Readout: DP 300 (561-301) Multifunctional Data Processing System Illumination: Contour illumination:24v/150w (halogen Lamp ) Surface illumination:21v/150w (Optical Fiber) Power Supply: AC110V/60Hz; 220V/50Hz, 650W Dimension (D×W×H): 1620 x750 x 1400mm Packing Dimension (L×W×H) : 1790 x 890 x 1520mm 1300 x 880 x 1250mm : 300/250Kg

JT3015 Optical Vertical Profile Projector

Model Number ：JT-3015 Work table: 340x152mm work size x y z: 150x50x100mm Instrument measurement precision (UM): < or =(3+L/200) X.Z resolution: 0.0005mm Projector screen size (mm): Dia312 Projection rotation range: 0-360 Rotation Angle resolution: 1 or 0.01 Objective lens: 10x .20x.50x.100x Object field : Dia30 Dia15. Dia6 .Dia3 Focal distance of objective: 77. 44. 39. 25 Instrument illumination: 24V/150W halogen lamp Power Supply： 110v/220v (AC),50/60HZ, 400W Instrument size (L*W*H): 770X550X1120mm

VB12 Optical Vertical Profile Projector

Reverse Image：VB12-1550 ，VB12-2010 Obverse Image：VB12-1550Z，VB12-2010Z Metal Stage Size：340x152 mm ，350x170 mm Glass Stage Size：196x96 mm ，246x120 mm Stage Travel: X and Y-axis：150x50 mm ，200 x 100 mm Stage Travel: Z-axis：100mm (for focusing) Accuracy：≤3+L/200(um) Resolution of X and Y-scale 0.0005 mm Screen Diameter :?330mm,Effective Range ≥ ?300(with “* ” Reticle) Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° Digital Readout DP 300Multifunctional Data Processing System/RS232 Illumination ：24v/150w halogen lamp (adjustable) Cooling System Forced Cooling (3-axis-fans) Power Supply AC110V/60Hz; 220V/50Hz, 400W Dimension (D×W×H) 785x 575 x 1136mm Packing Dimension (L×W×H) 1540 x 790 x 1500mm Gross/Net Weight 260/220Kg

VB16 Optical Vertical Profile Projector

Reverse Image：VB16-2010 Obverse Image：VB16-2010Z Metal Stage Size：350 x 170mm Glass Stage Size：246 x 120mm Stage Travel: X and Y-axis：200 x 100mm Stage Travel: Z-axis：100mm (for focusing) Accuracy：≤3+L/200(um) Resolution of X and Y-scale 0.0005 mm Screen Diameter :?425mm,Effective Range ≥ ?400(with “* ” Reticle) Diameter :?425mm,Effective Range ≥ ?400(with “* ” Reticle) Digital Readout DP 300 Multifunctional Data Processing System Illumination ：24v/150w halogen lamp (adjustable) Cooling System Forced Cooling (3-axis-fans) Power Supply AC110V/60Hz; 220V/50Hz, 650W Dimension (D×W×H) 760 x 530 x 1100mm Packing Dimension (L×W×H) 1540 x 790 x 1500mm Gross/Net Weight 260/220Kg

QVS4030CNC

Model Number ：QVS4030CNC Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Usage: Three Coordinate Measuring Machine Measuring body size: 1540x1066x1750mm work size: 400x300x200mm operating platform max load weight: 35kg xy axis Accuracy: <(3+L/200)UM Grating ruler: America brand High precision GSI. 0.5um CCD: SONY colorfulCCD

MV7070 CNC imaging measuring machine

Brand Name: JATEN Model Number: MV7070CNC, MV7070CNC Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Resolution: 0.5 Measuring body size: 1750x1510x1700mm Measuring Range: X700*Y700*Z200mm operating platform max load weight: 300kg xy axis Accuracy(Eum,L:mm): 3+L/200 UM ISO 10360-2 maximum permissible error Grating ruler: America brand High precision GSI. 0.5um CCD: SONY colorfulCCD

JT 654 Coordinate measuring machiner

Brand Name: JATEN Model Number: JT 654, JT 654 Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Resolution: 0.5 Measuring body size: 950x1050x2000mm Measuring Range: X500*Y600*Z400mm operating platform max load weight: 300kg xy axis Accuracy(Eum,L:mm): 3.5+L/250 UM ISO 10360-2 maximum permissible error Grating ruler: America brand High precision GSI. 0.5um

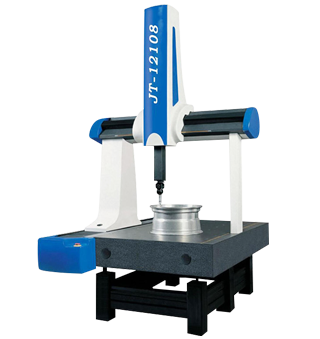

JT 12108 Coordinate measuring machiner

Brand Name: JATEN Model Number: JT 12108, JT 12108 Optical system: Automatic zoom lens Power: Electronic 220V/110V 50HZ Usage: Three Coordinate Measuring Machine Measuring body size: 950x1050x2000mm work size: 500x600x240mm operating platform max load weight: 300kg xy axis Accuracy: <(3+L/200)UM Grating ruler: America brand High precision GSI. 0.5um CCD: SONY colorful CCD

High resolution triplex scanner 3-d laser scanner

Including the complex appearance ,Soft objects or easily worn moulds.Sample.work extremely fast .Single scan time less than 5 seconds. High accuracy : Single precision can be up to 7 μm .Unique calibration techniques.Accuracy testing method based on the German optical scanner measurement test standard VDI/VDE2634 formulation .

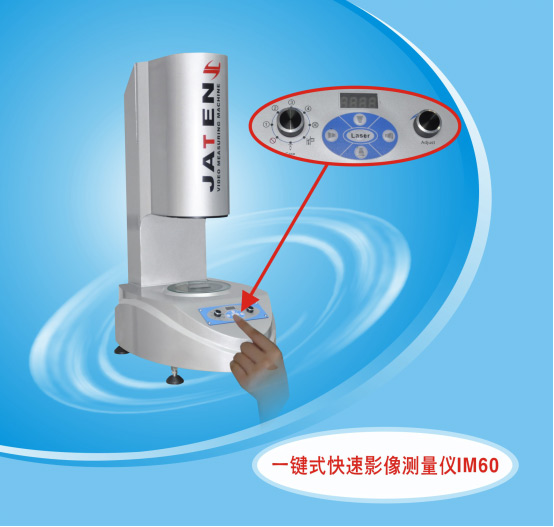

Instant Video measuring machine IM60

New Type measuring instrument for batch measurement of gear, screw, mobile phone jacket. mobile phone glass and some small measuring pieces;

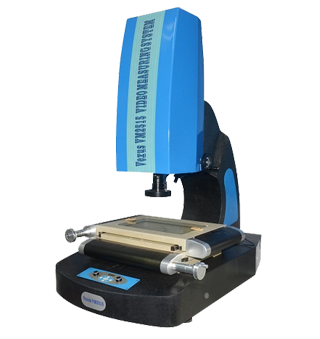

WMS-1860

Model Number: VMS-1860 Objective magnification: Visual system:1x (standard) 2x(Optional) Eyepiece magnification: Visual system: 10X (Optional) Total magnification: Visual system:10X~50X Image resolution: 640*480 Table size: 354x228mm Machine size : 530x530x795mm Table travel: X=150 Y=100 Z=150 (Focusing) X.Y.Z Digital resolution: 0.0005mm X, Y coordinates of the indication error:(3+L/50)μm Transmission lighting: Focusing hand wheel adjustable elastic, lifting range 60mm Lighting: 24V/20W Tungsten halogen lamps Reflective lighting: 12V LED Ring light and reflected illumination with laser point

DV-2515

Model number: HB24 Be Applied to Mechanical ,,Electronic ,Plastic Fields etc. Fashionable Shape With Stable Ark Pillar Granite Design. Adjustable 4-division LED Illuminator controled by panel or software Obviously assistant laser position system Powerful Measuring Software Quick Measuring Version Function of Data Processing,Displaying,Input,Output, With RS-232 Interface

VMM-1510

Model number: VMM-1510 Be Applied to Mechanical ,,Electronic ,Plastic Fields etc. Function of Data Processing,Displaying,Input,Output, With RS-232 Interface With Quick Measuring Software Obviously assistant laser position system

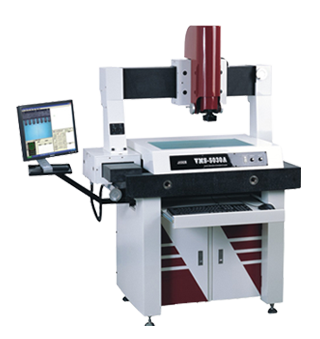

VMS5030

Model number: VMS-5030 High-power Non-contact Optical Measuring Instrument with Large Working Travel Mainly applicable for the measurement of large PCB, LCD and other big Parts. Stable Granite Base Imported V-shape Guide Precised Metal and Glass Worktable Adjustable USB 4-division Ring LED illumination Advanced Navitar 0.7~4.5X Zoom Lens Wonderful Sony 1/2’’ Color CCD Camera Powerful Measuring Software Quick Measuring Version Function of Data Processing,Displaying,Input,Output, With RS-232 Interface

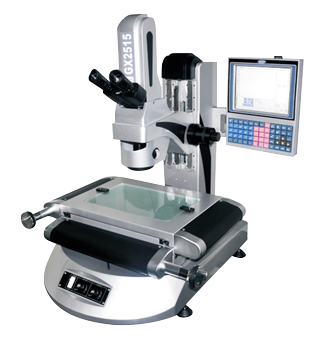

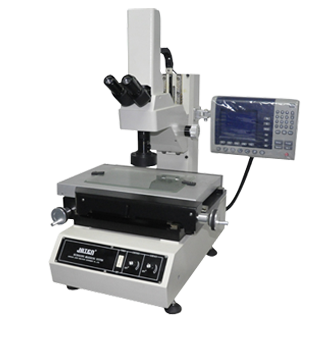

Tool Microscope basic properties

Model Number ：GX2515 IIA image resolution：640x480 Power Supply：Electronic 220V/110V 50HZ Eye lens: 10X(Monocular,Binocular) Lighting: 12V LED Ring light work size x y z: 250x150x150mm X.Y.Z resolution: 0.0005mm xy axis Accuracy: < or =(3+L/200)UM Objective magnification errors: =or <0.08% optical lens: 1x(standard),2x(optional)
