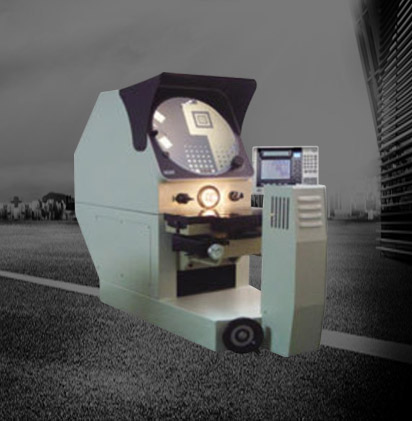

HB12 Optical Horizontal Profile Projector

Model Number ：HB12

Work table: 408x126mm

work size x y z: 200x75x100mm

Instrument measurement precision (UM): < or =(3+L/200)

X.Z resolution: 0.0005mm

Projector screen size (mm): Dia330

Projection rotation range: 0-360

Rotation Angle resolution: 1 or 0.01

Objective lens: 10x .20x.50x.100x

Object field : Dia30 Dia15. Dia6 .Dia3

Focal distance of objective: 77. 44. 39. 25

Instrument illumination: 24V/150W halogen lamp

Power Supply： 110v/220v (AC),50/60HZ, 400W

Instrument size (L*W*H): 1147X556X964mm

FEATURES

1. The horizontal measuring projector is an accurate and efficient measuring instrument for optical, mechanical and electrical integration.

2. General product structure and wide usage.

3. Can detect the contour size and the surface shape of the complex work piece.

4. Such as model, punch parts, cam, screw, gear, forming milling cutter, etc.

5. Horizontal measuring projector is widely used in machinery, mold, instrument, electronics, light industry and other industries.

6. It is an indispensable measurement instrument for measuring chamber and workshop.

PRODUCT ADVANTAGES HB12 Optical Horizontal Profile Projector

1. it can effectively complement the measurement and observation.

2. stable performance

3. high precision

4. simple operation

5. easy maintenance

6. Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.

Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。

Packing ,transportation and after sales service

1. One years warranty for the mother board.

2. Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
